Perseus Energy 242

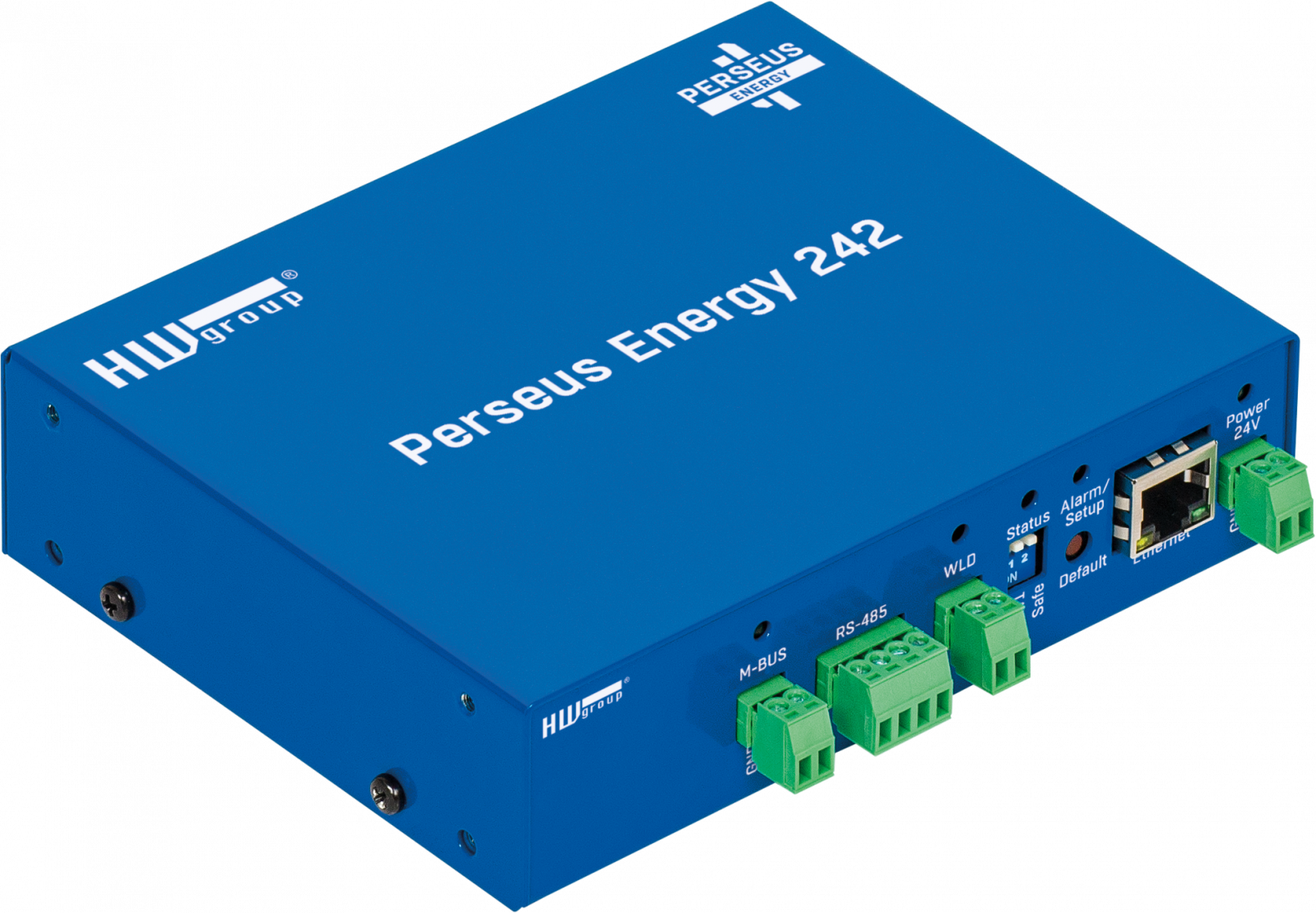

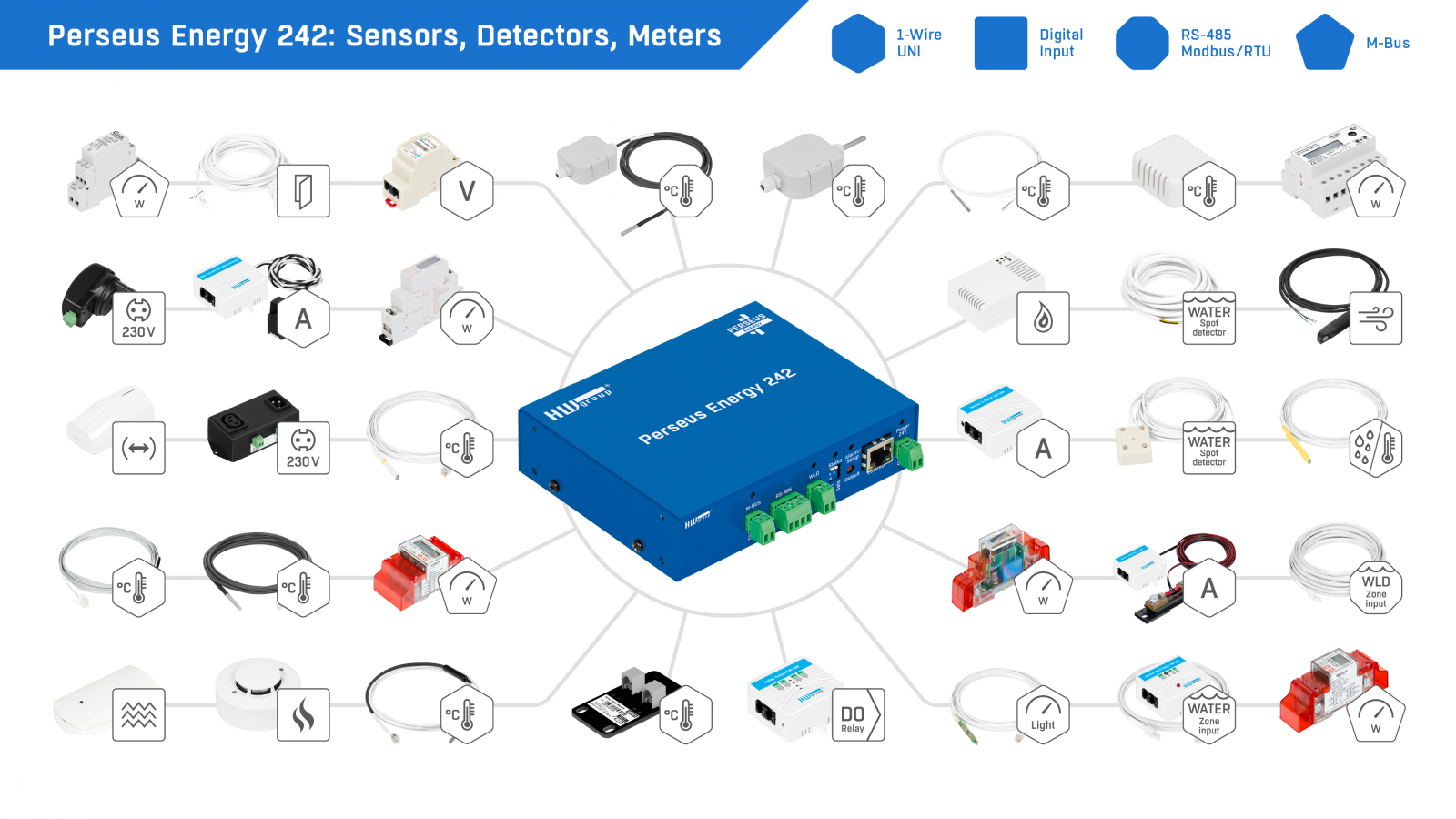

Perseus Energy 242 is a LAN solution in metal case for remote energy monitoring and control applications with M-Bus Master. Connect external physical sensors (°C, %RH, A, V, …), Detectors (relay / dry contact) or WLD (Water Leak Detection) sensing cable. 3rd party meters (sensors) can also be connected via LAN or Modbus/RTU.

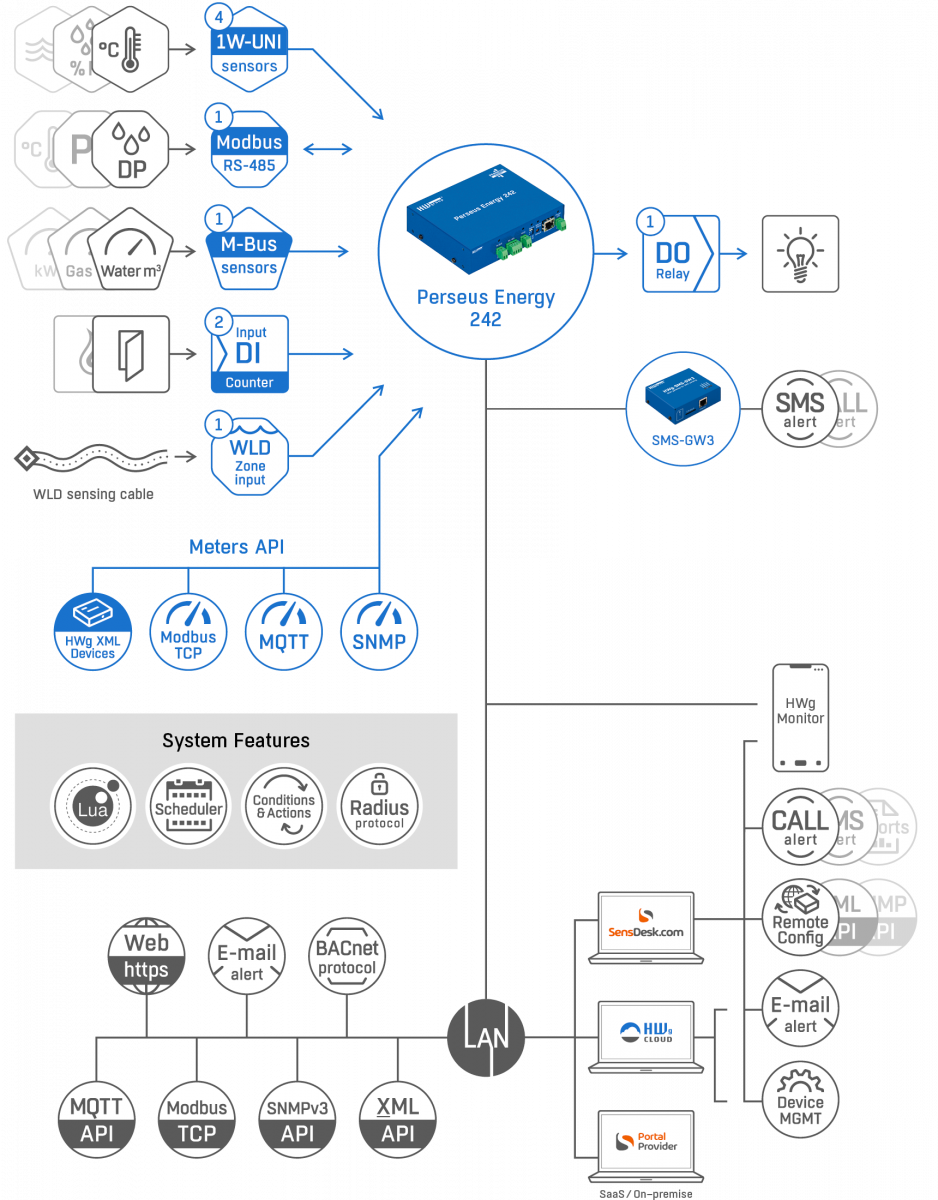

Perseus Energy 242 combines data from external physical sensors / detectors / meters with data from other HWg devices connected via LAN. Local conditions, Lua scripting, calendar or periodic scheduler help to analyze the measured data.
Email or SNMP Trap alert can be sent from the Perseus device. Measured values are available via Open API (XML, Modbus/TCP, MQTT).
Perseus Energy 242 can be connected to the Portal (SensDesk Technology). Together with the Portal it is a powerful solution for professional applications.

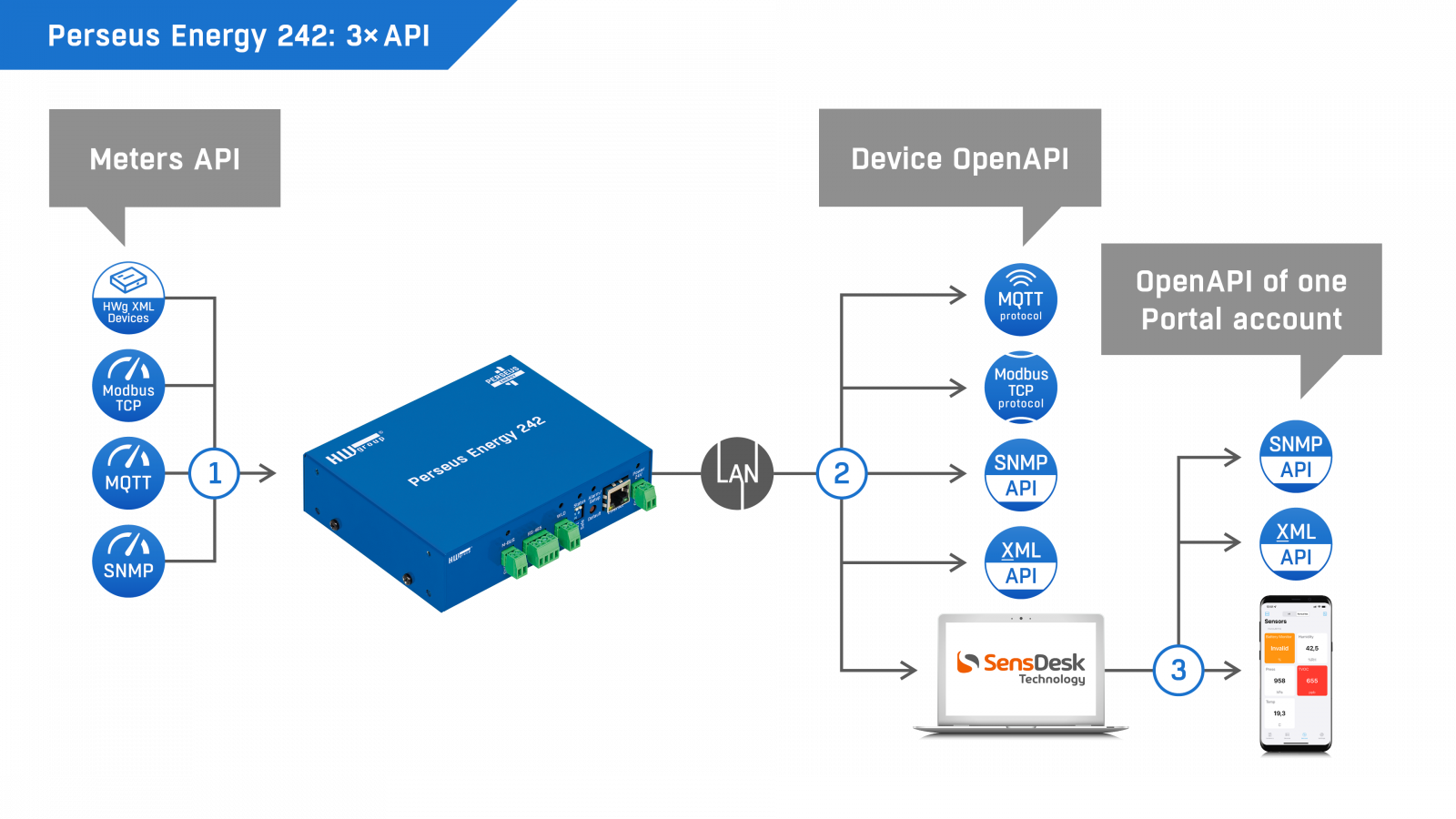

A unique feature of all Perseus products is the Meters API. That means that Perseus can read over LAN sensor values from other devices (e.g. STE2 R2) and use this data for analysis or alerting.
Choose Quantity

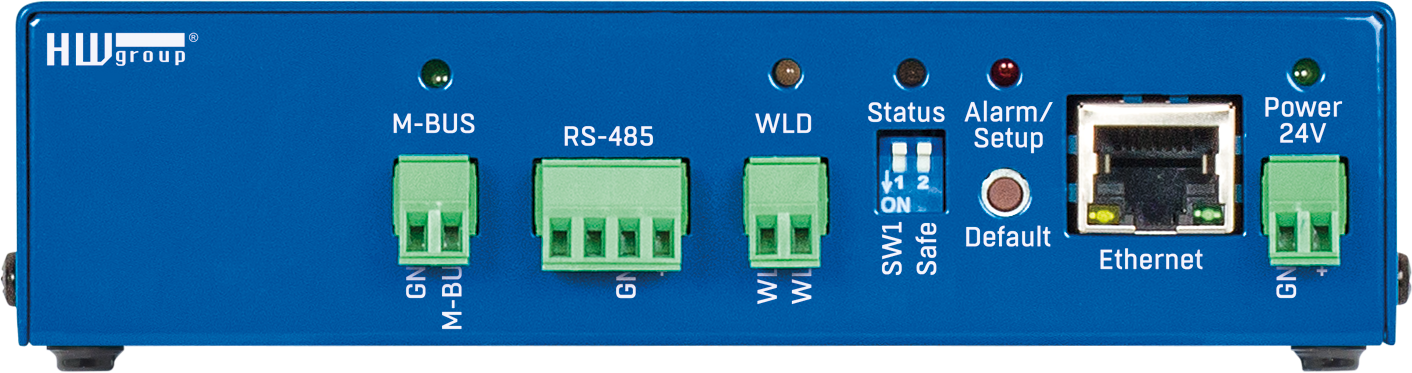

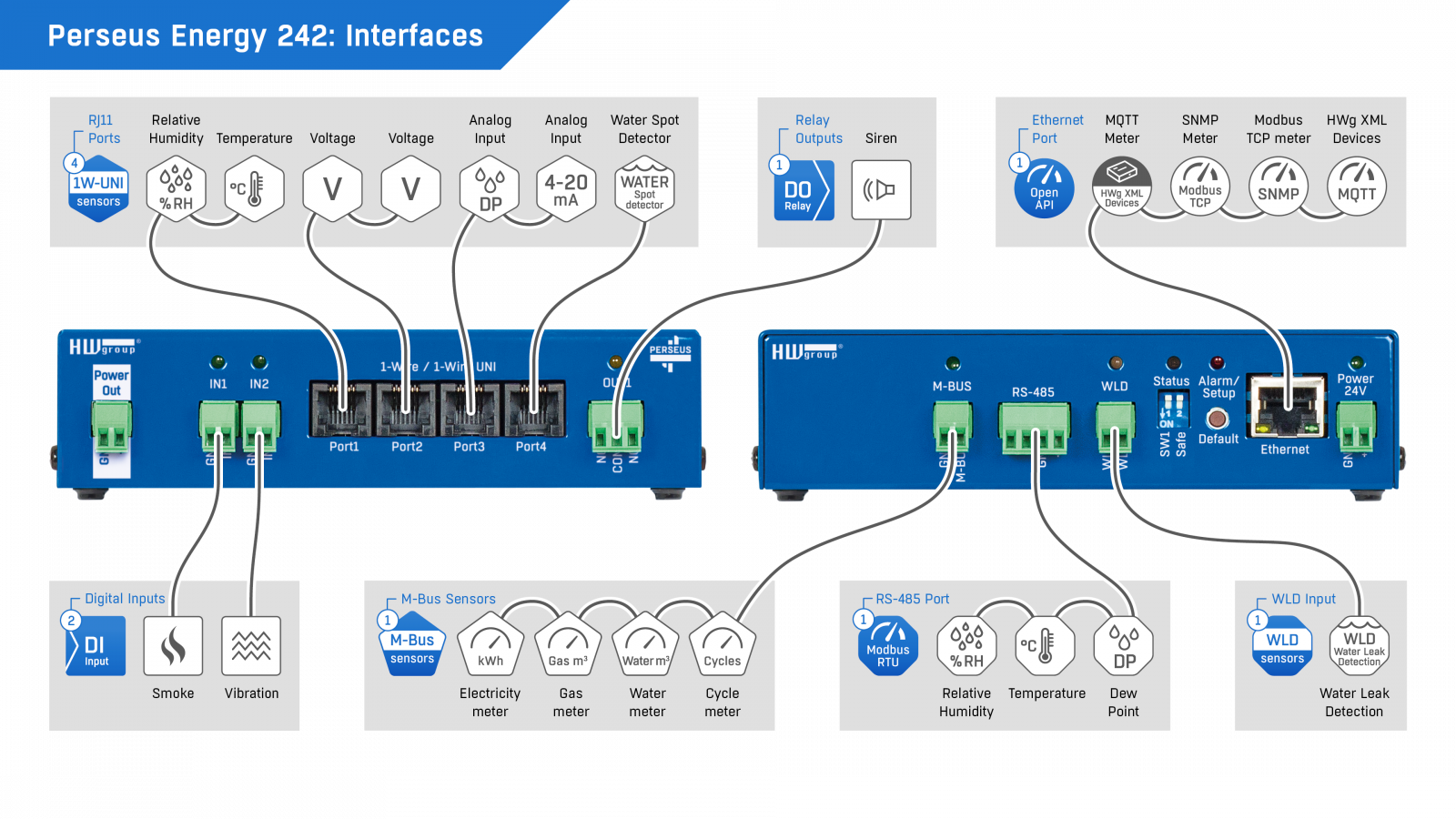

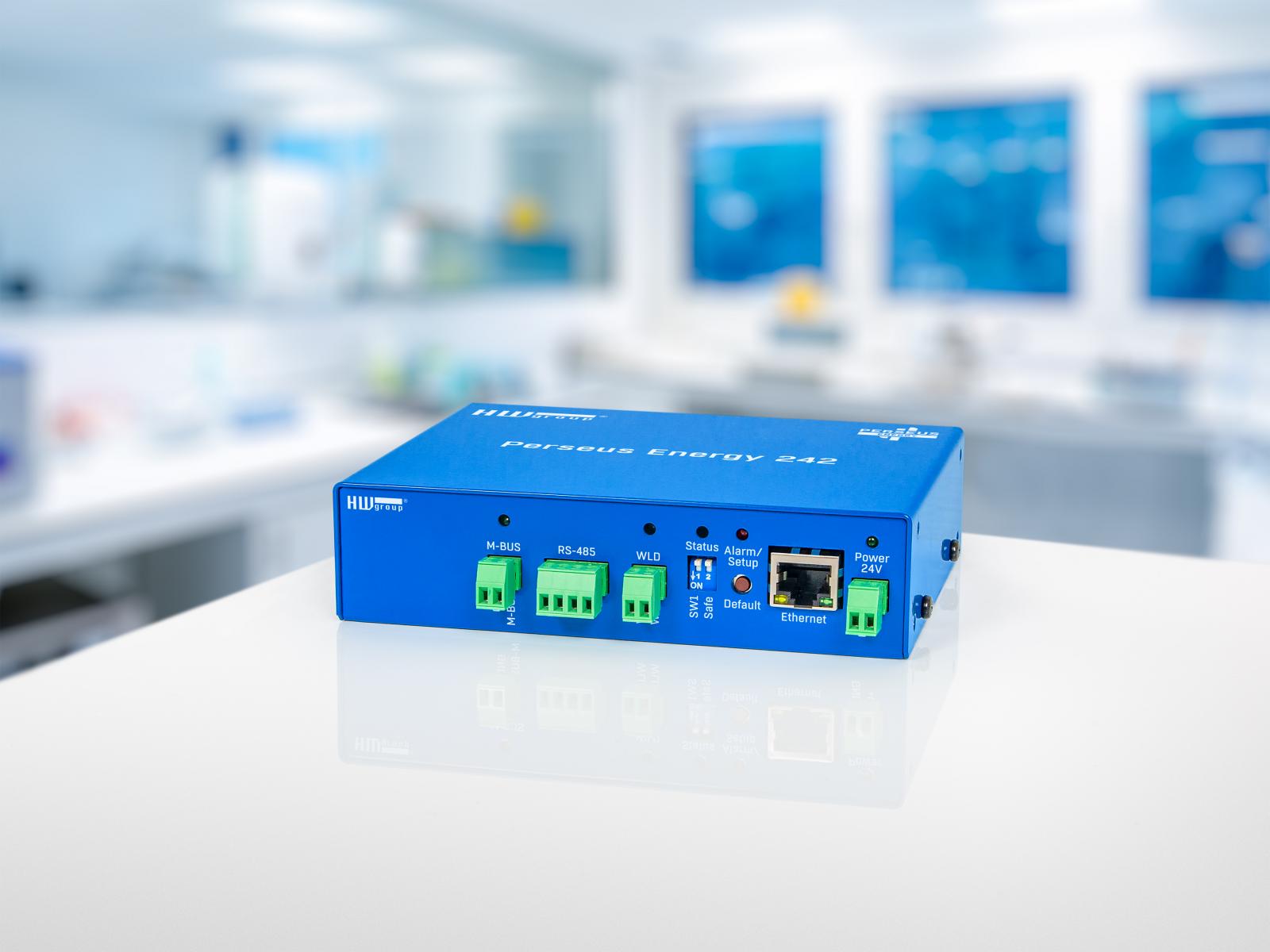

- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server

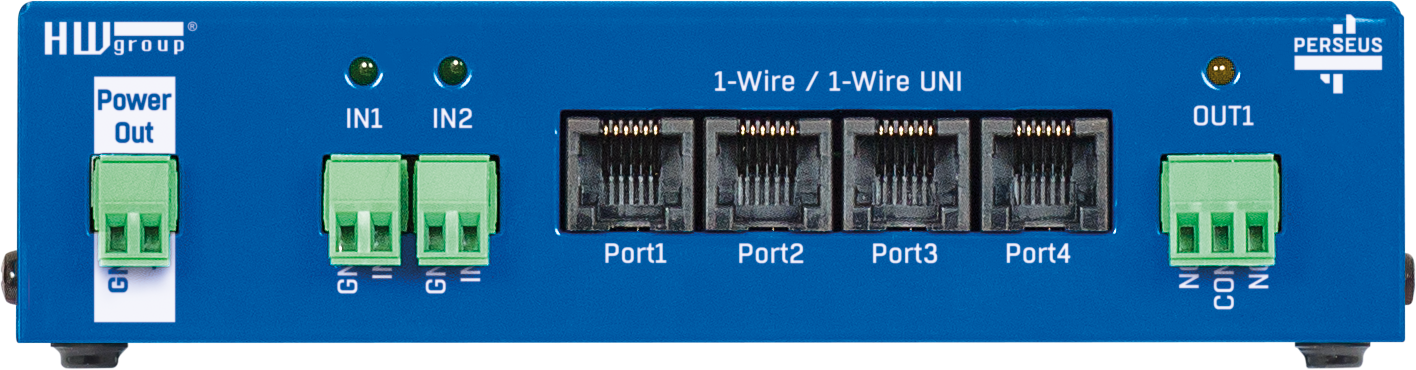

- 4xRJ11 port - max. 2 external sensors 1-Wire UNI per port
- RJ11 sensors: Temperature, Relative Humidity (Indoor / Outdoor), Voltage, Current (0-30A or 4-20mA) and much more
- RS-485 (Modbus/RTU): 1x terminal block

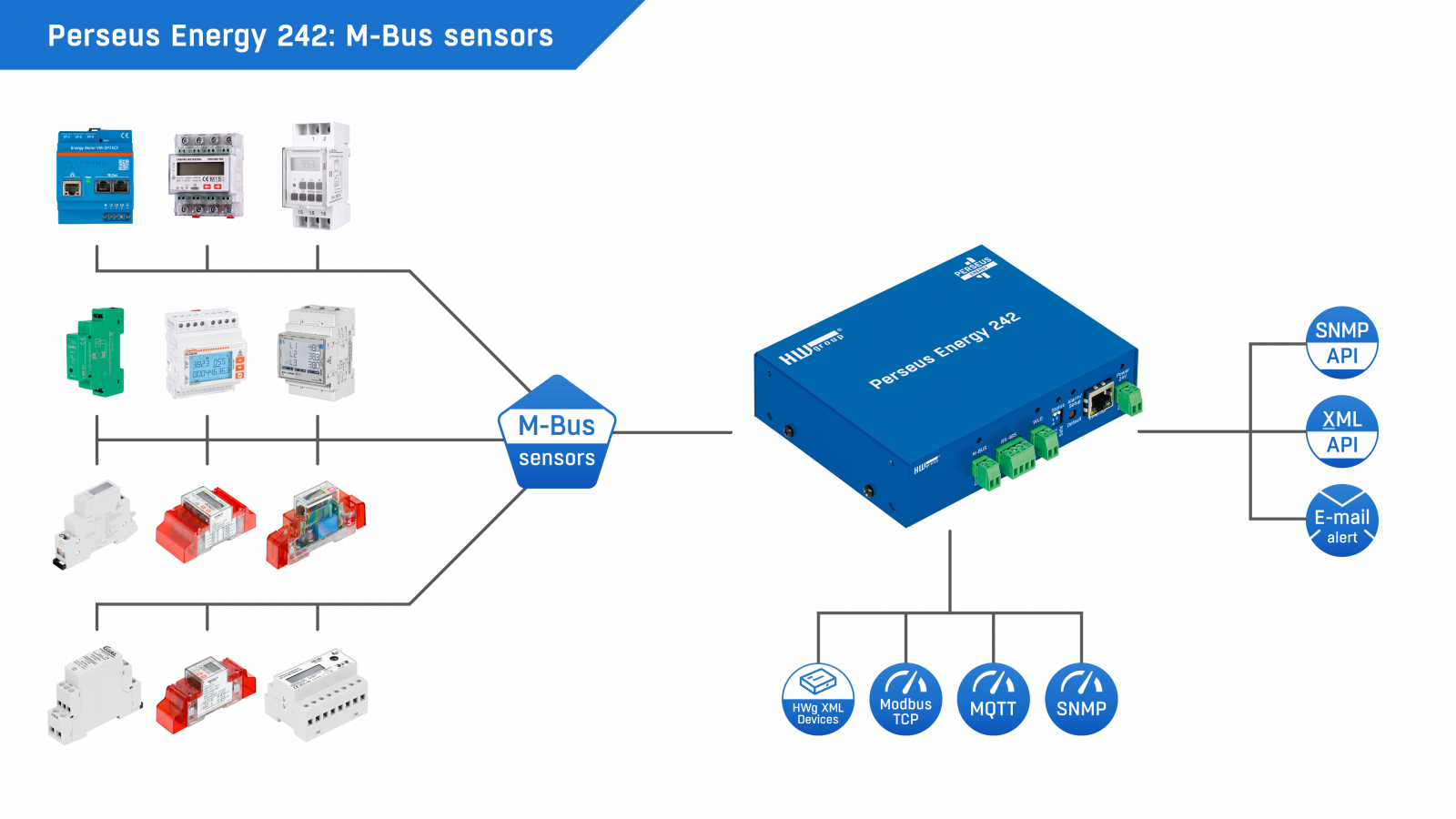

- M-Bus Master: 1x terminal block

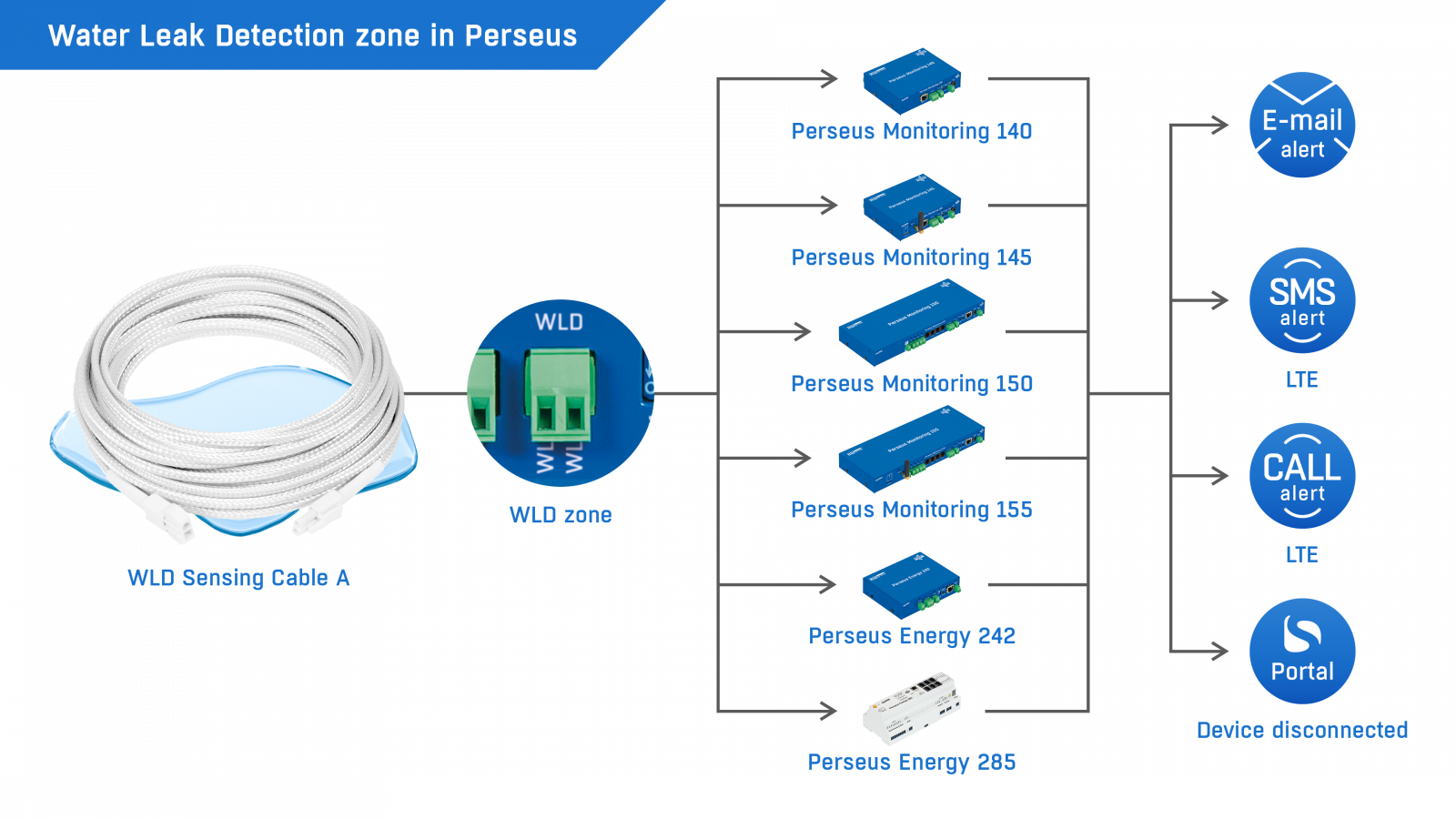

- WLD: 1 zone for external Water Leak Detection sensing cable
- DO (Digital Outputs): 1x DO (relays)
- DI (Digital Inputs): 2x DI (dry contact)
- Detectors: Smoke, door contact, fan failure detector, power presence, etc
- Device Alerts: SNMP trap, email
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert
- Open API: SNMP, XML, Modbus/TCP, MQTT, BACnet
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
- Remote Configuration with SensDesk Technology
Typical Applications:
- Remote site data concentrator of all local sensors / meters
- Remote technical room monitoring
- Boiler room equipment monitoring
- Industrial machinery monitoring
- Greenhouse / food storage / pharmaceutical warehouse monitoring
- Remote infrastructure monitoring
