Perseus Energy 240
Perseus Energy 240 is the simplest and most affordable Perseus LAN monitoring device, designed to connect HW group's and third-party RS-485 Modbus/RTU sensors to the SensDesk Technology-based Portal. It can also be used as a Modbus/RTU to Modbus/TCP gateway.
Perseus Energy 240 supports up to 100 meters with 1000 variables, connected via RS-485 (Modbus/RTU).
It can read values from other network devices via generic SNMP, Modbus/TCP, MQTT and XML (for HWg devices).
It can analyze metered data from RTU / LAN devices with using local alarms, conditions and actions, and LUA scripts executed in the Perseus device.
Perseus Energy 240 is a gateway, it has only RS-485 interface, no RJ11 ports and no DI (Digital Inputs).
Rs.57,996.00 Rs.90,000.00
Choose Quantity
Product Details
Features:

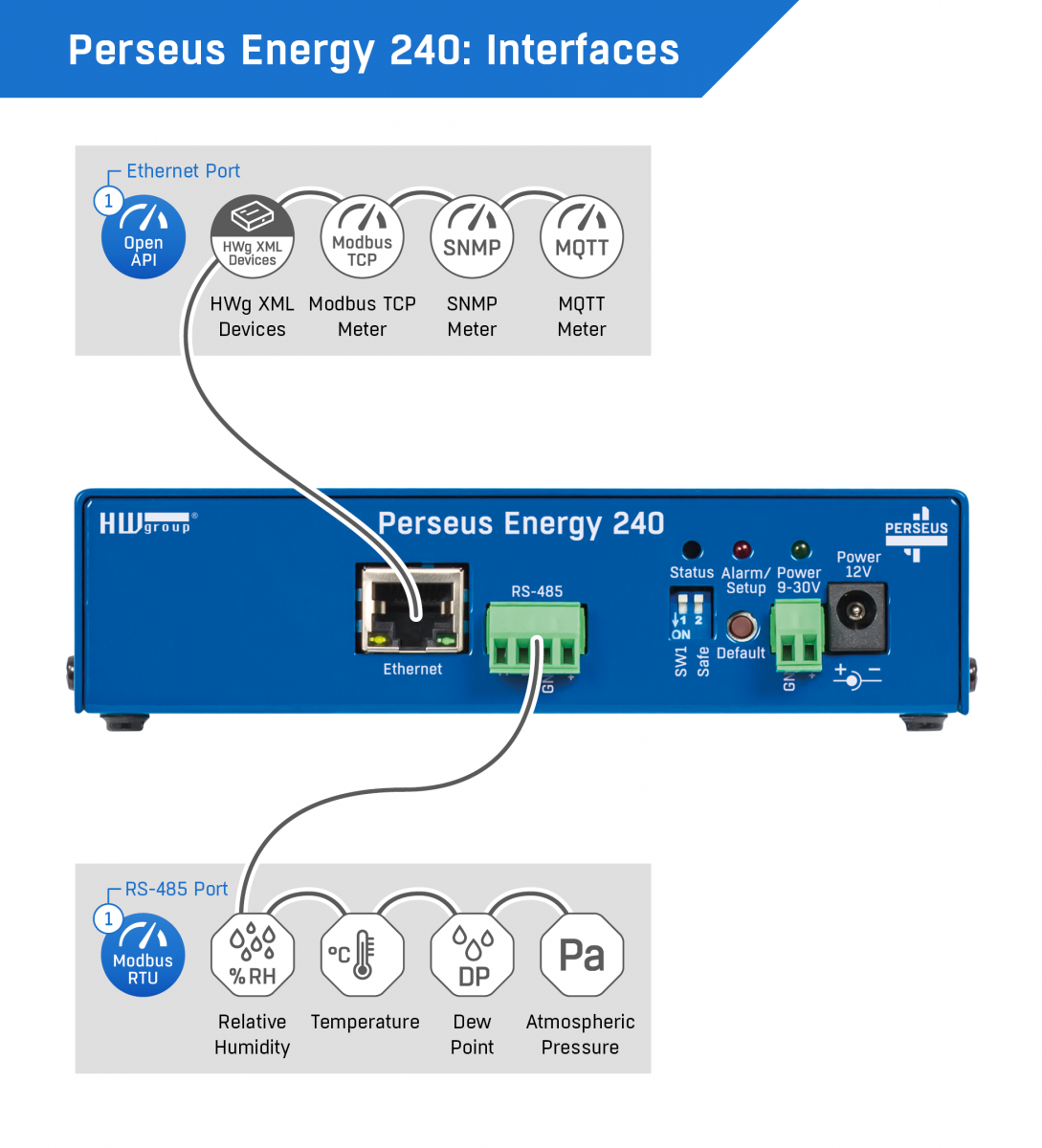

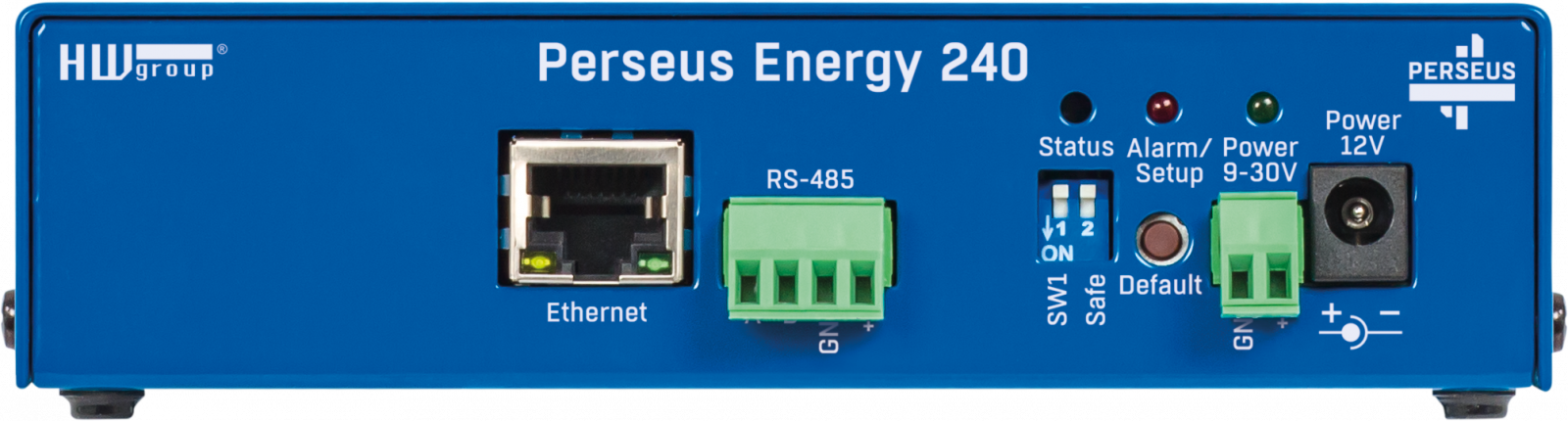

- Ethernet: RJ45 (100BASE-T); WEB: Built-in web server
- RS-485 (Modbus/RTU): 1x terminal block
- Device Alerts: SNMP trap, email, (SMS / Calls with external SMS GW)
- Portal Alerts: Email, SMS / Calls, Device Invalid Alert

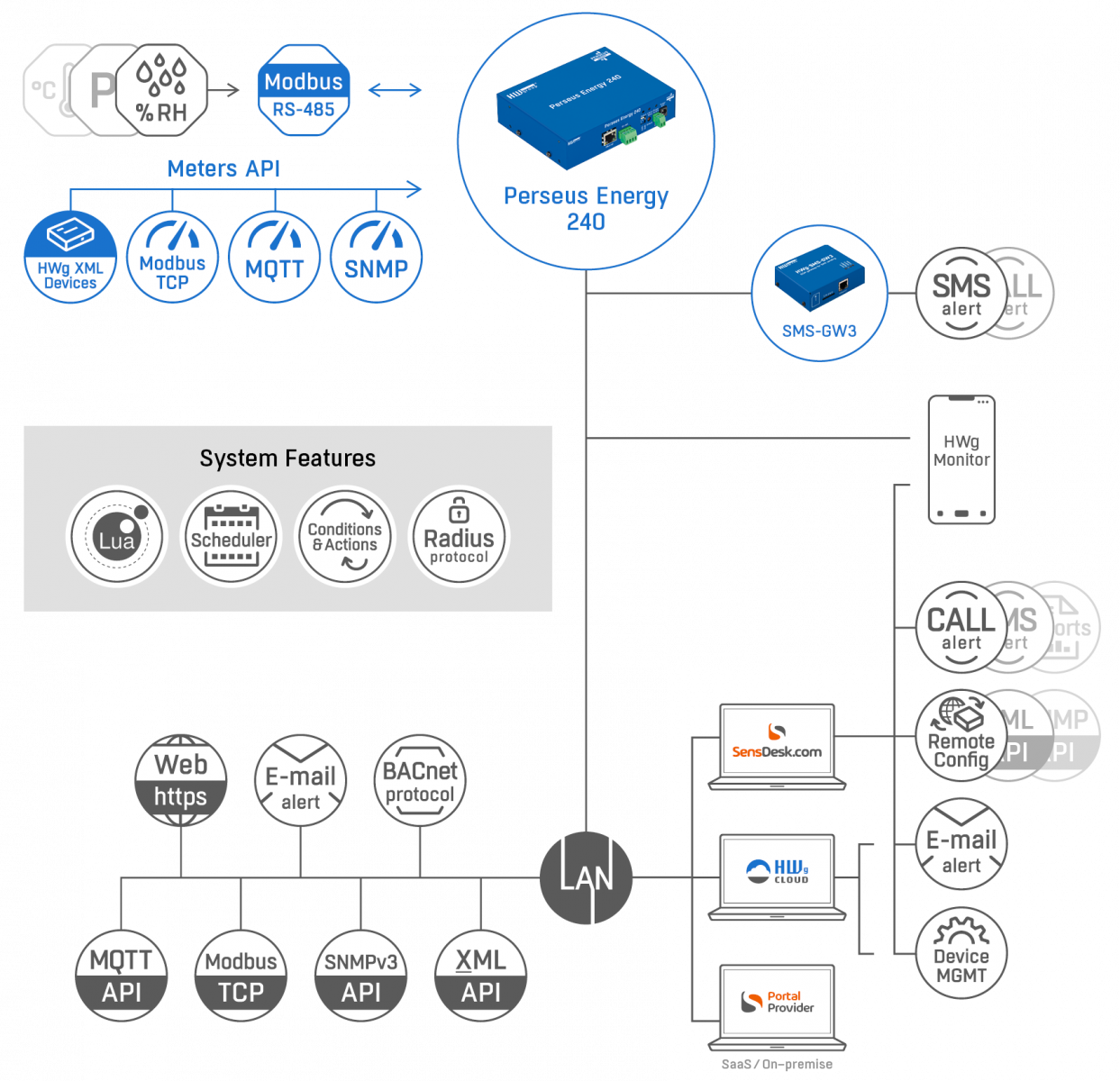

- Open API: SNMP, XML, Modbus/TCP, MQTT, BACnet
- Professional product: IPv6, SNMP Traps, SNMP v3
- Security: Radius - IEEE 802.1X, Admin and user accounts, HTTPs (customer certificate)
- Meters API (LAN): HWg devices XML, Modbus/TCP, SNMP, MQTT
- Data processing: Condition & Actions, Virtual sensors, Scheduler
- Remote Configuration with SensDesk Technology
Applications and usage:
Typical Applications:
- Modbus GW (Modbus RTU to TCP)
- Remote machine monitoring
- Remote environmental monitoring of warehouse / storage spaces
- Remote monitoring of technical room (sites)
- Remote site data concentrator of all local sensors / meters
- Remote environmental monitoring within the cabinet or telco site
- Pharmaceutical / warehouse environment monitoring
- Remote base transceiver station monitoring
- Greenhouse monitoring
